TRANSLATOR PARKING
For parking/retrieval, translator runs along the horizontal way and at the same time, trolley mounted on translator starts to operate vertically. Average time of parking/retrieval is less than a minute. Adding number of entrance and exit or arranging their locations in flexible ways, either will lead to increase of car park number and easier management of traffic flow.
Translator Parking

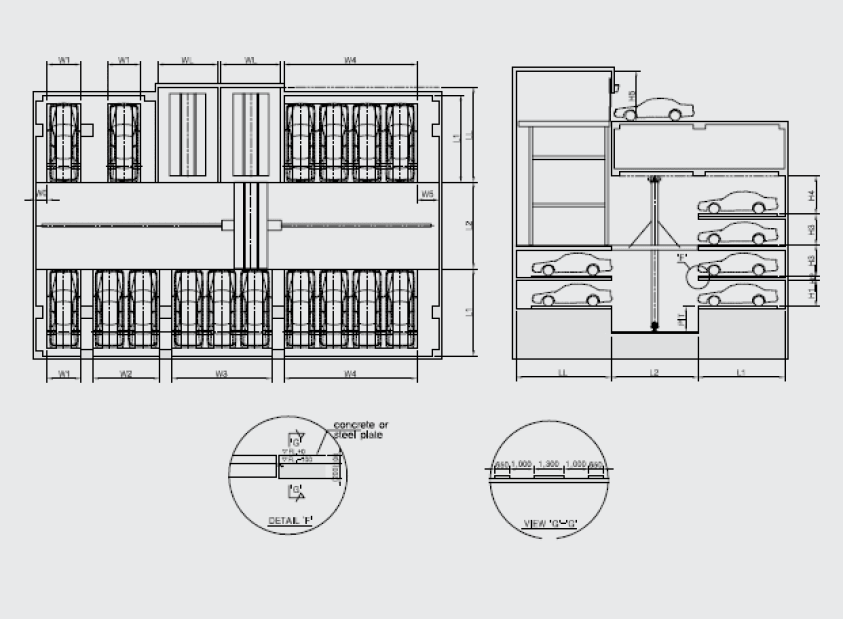

LAYOUT
STANDARD DIMENSIONS
| ML | ME | ||
|---|---|---|---|
| W(mm) | W0 | 700 | 700 |
| W1 | 2,100 | 2,300 | |
| W2 | 4,200 | 4,600 | |
| W3 | 6,300 | 6,900 | |
| W4 | 8,400 | 9,200 | |
| W5 | 1,400 | 1,400 | |
| WL | 3,800 | 3,800 | |
| L (mm) | L1 | 5,500 | 5,500 |
| L2 | 5,500 | 5,500 | |
| LL | 6,000 | 6,000 | |
| H (mm) | H1 | 1,650 | 1,651 |
| H2 | 300 | 300 | |
| H3 | 1,950 | 1,950 | |
| H4 | 2,400 | 2,400 | |
| H5 | 3,200 | 3,200 | |
| PIT (mm) | 1,800 | 1,800 |
STANDARD SPECIFICATION
| Lift | Driving Type | Rope & Chain | ||
|---|---|---|---|---|
| Motor | 22 kw | |||
| Speed | 60m/min | |||
| Translator | Direction | Lifting | Transversing | Shifting |
| Motor | 18.5kW | 5.5kW | 5.5kW | |
| Speed | 50/min | 50/min | 16 sec/cycle | |
| Power Supply | 60KVA |
STANDARD CAR DIMENSIONS
| Type | ML | ME |
|---|---|---|
| Overall Width (mm) | 2000 | 2150 |
| Overall Height (mm) | 1550 | 550 |
| Overall Length (mm) | 5000 | 5150 |
| Weight (kg) | 1850 | 2200 |
