ELE-PUZZLE PARKING
This system is a combination of elevator & puzzle operations. This system is ideal for heights between 8 levels to 18 levels.
Complete safety device and simple operation.
ELE-PUZZLE PARKING

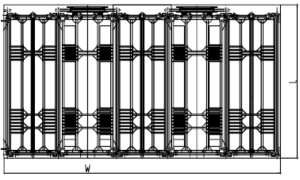

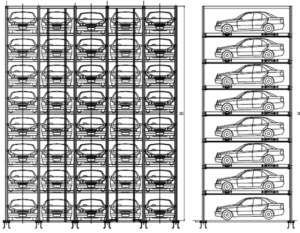

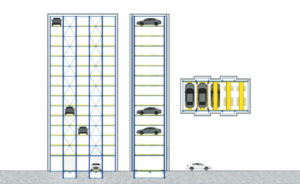

LAYOUT
SPECIFICATIONS
| Parameter | Value |
|---|---|
| Car Size (W x D x H) | 5000 x 1850 x 2000 mm |
| Car Weight | 2500 KG |
| Max Retrieve Time | 30 S |
| Lift Speed, Power | 80 M/MIN, 22 KW |
| Slide Speed, Power | 13 M/MIN, 0.4 KW |
| Control | PLC |
| Operate | BUTTON MODE WITH CARD READER |
| Power | 3PH 380V/50HZ |
STANDARD DIMENSIONS
| CAPACITY (Vehicles) | W (mm) | L (mm) | H (mm) |
|---|---|---|---|
| 8 | 14750 | 6500 | 19,500 |
| 9 | 14750 | 6500 | 21,800 |
| 10 | 14750 | 6500 | 24,000 |
| 11 | 14750 | 6500 | 26,400 |
| 12 | 14750 | 6500 | 28,700 |
| 13 | 14750 | 6500 | 31,000 |
| 14 | 14750 | 6500 | 33,300 |
| 15 | 14750 | 6500 | 35,600 |
| 16 | 14750 | 6500 | 37,900 |
| 17 | 14750 | 6500 | 40,200 |
| 18 | 14750 | 6500 | 42,500 |
