CAR BOT PARKING
Quick operation time of pallet less system and a few advantages of pallet system. The robot lifts and shifts the car for parking.

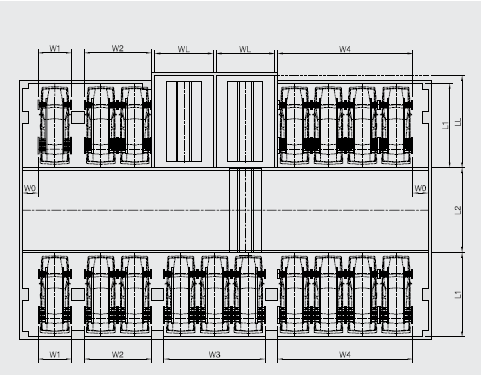

LAYOUT
STANDARD DIMENSIONS
| ML | ME | ||
|---|---|---|---|
| W(mm) | W0 | over 1000 | over 1000 |
| W1 | 2,200 | 2,300 | |
| W2 | 4,400 | 4,600 | |
| W3 | 6,600 | 6,900 | |
| W4 | 8,800 | 9,000 | |
| WL | 3,800 | 4,000 | |
| L (mm) | L1 | 5,500 | 5,600 |
| L2 | 5,500 | 5,600 | |
| LL | 6,000 | 6,200 | |
| H1 | 2,000 | 2,000 | |
| H (mm) | H2 | 4,000 | 4,000 |
| H3 | 6,000 | 6,000 | |
| PIT (mm) | 1600 | 1600 |
STANDARD SPECIFICATIONS
| Elevation | Driving Power | Rope |
|---|---|---|
| Motor | 22kW | |
| Speed | 60m/min | |
| Translator | Driving | 1.5kW(2 Sets), 60m/min |
| Vertical | 4kW(Servo, 1.5kW(2 Sets), 0.4kW, 50m/min | |
| Power Supply | 50KVA |
STANDARD CAR DIMENSIONS
| Type | ML | ME |
|---|---|---|
| Overall Width (mm) | 2000 | 2150 |
| Overall Height (mm) | 1550 | 550 |
| Overall Length (mm) | 5000 | 5150 |
| Weight (kg) | 1850 | 2200 |
