CART PARKING
This system is ideally suited for large footprint & low height. This system has both pallet & pallet-less versions with quick operations time suitable for 200 or more parking slots. Both transverse & longitudinal versions are available.
Longitudinal Type

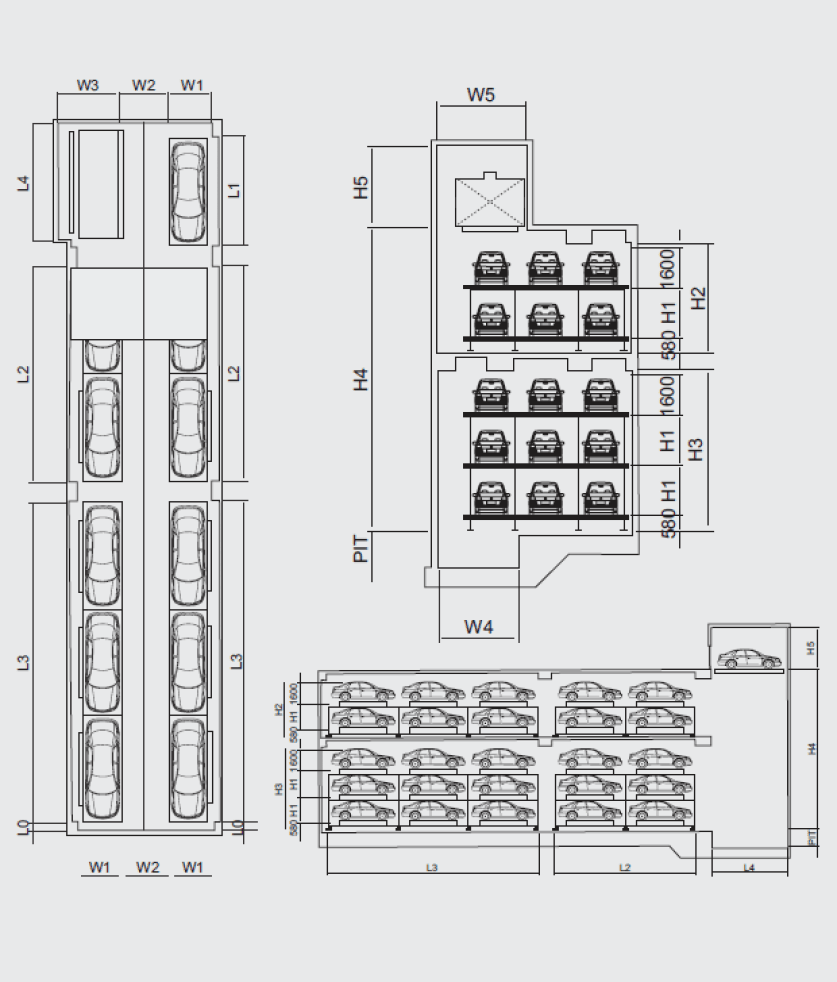

LAYOUT
STANDARD DIMENSIONS
| ML | ME | ||
|---|---|---|---|
| L (mm) | L0 | 300 | 300 |
| L1 | 5,500 | 5,700 | |
| L2 | 10,800 | 11000 | |
| L3 | 16,100 | 16,700 | |
| L4 | 5,800 | 6,000 | |
| W (mm) | W1 | 2,200 | 2,300 |
| W2 | 2,500 | 2,500 | |
| W3 | 3,200 | 3,300 | |
| W4 | 3,300 | 3,400 | |
| W5 | 3,600 | 3,600 | |
| H (mm) | H1 | 2,000 | 2,000 |
| H2 | 4,380 | 4,380 | |
| H3 | 6,380 | 6,380 | |
| H4 | VAR | VAR | |
| H5 | 3,200 | 3,200 | |
| PIT | 1,500 | 1,500 |
STANDARD DIMENSIONS
| Type | ML | ME |
|---|---|---|
| Overall Width (mm) | 2000 | 2150 |
| Overall Height (mm) | 1550 | 550 |
| Overall Length (mm) | 5000 | 5150 |
| Weight (kg) | 1850 | 2200 |
Cart In Lift Type

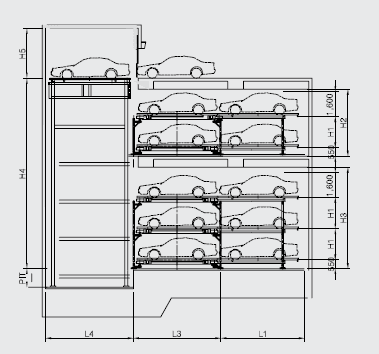

LAYOUT
STANDARD DIMENSIONS
| ML | ME | ||
|---|---|---|---|
| L (mm) | L0 | 300 | 300 |
| L1 | 5,500 | 5,700 | |
| L2 | 10,800 | 11,000 | |
| L3 | 16,100 | 16,700 | |
| L4 | 5,800 | 6,000 | |
| W (mm) | W1 | 2,200 | 2,300 |
| W2 | 2,500 | 2,500 | |
| W3 | 3,200 | 3,300 | |
| W4 | 3,300 | 3,400 | |
| W5 | 3,600 | 3,600 | |
| H (mm) | H1 | 2,000 | 2,000 |
| H2 | 4,380 | 4,380 | |
| H3 | 6,380 | 6,380 | |
| H4 | VAR | VAR | |
| H5 | 3,200 | 3,200 | |
| PIT | 1,500 | 1,500 |
Pallet Type

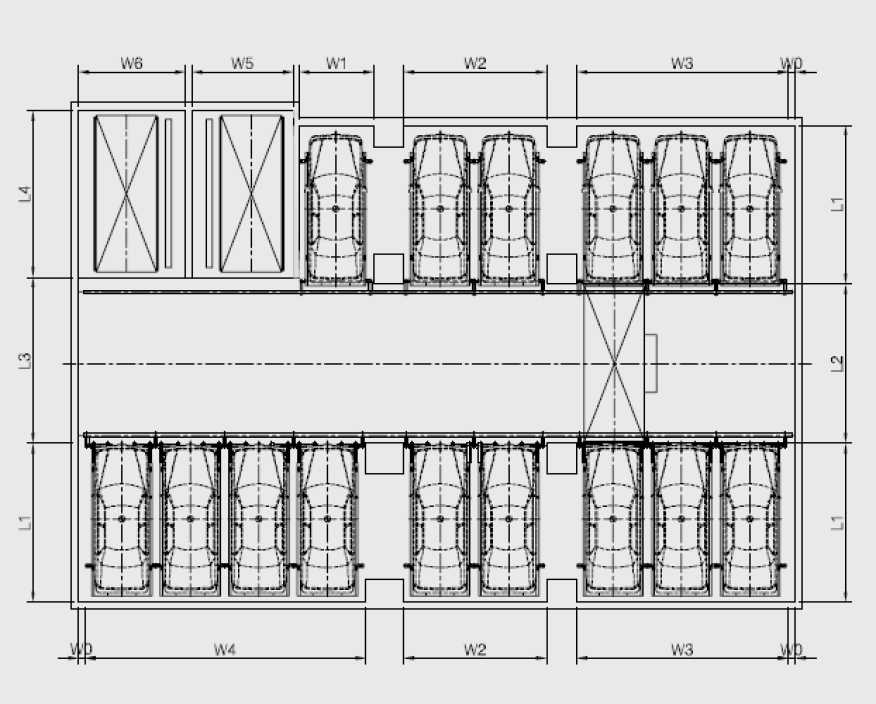

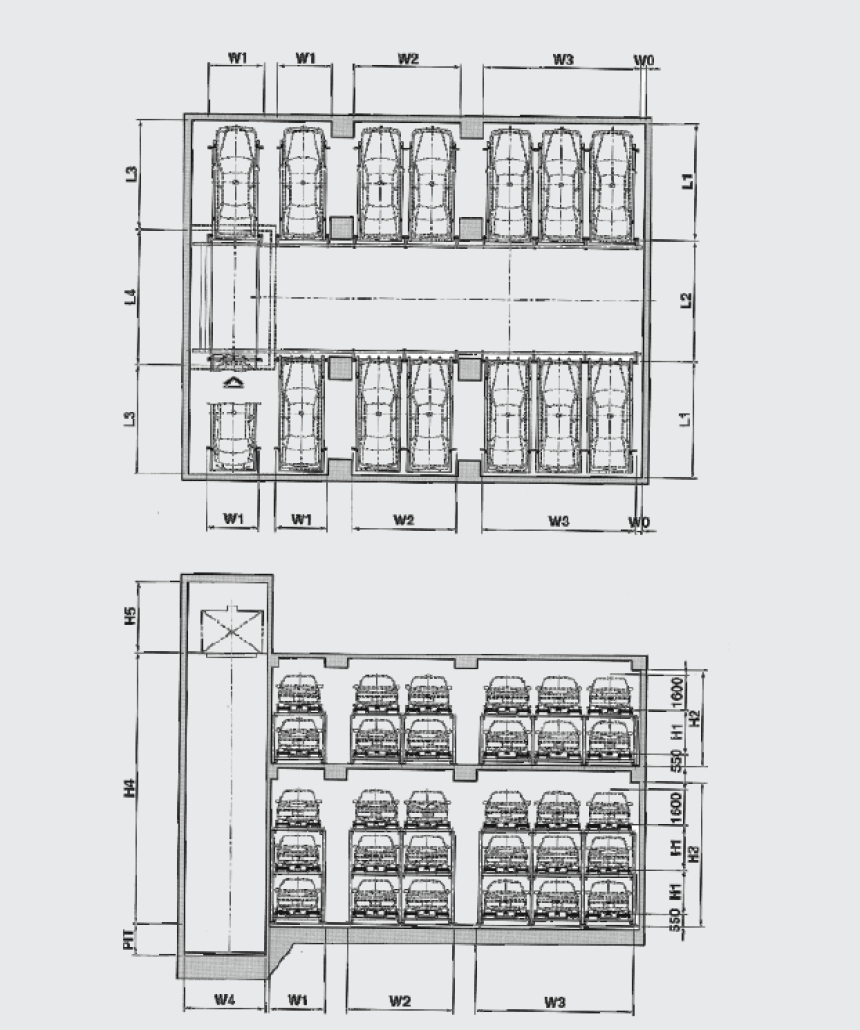

LAYOUT
STANDARD SPECIFICATION
| ML | ME | ||
|---|---|---|---|
| W0 | 300 | 300 | |
| W1 | 2,500 | 2,600 | |
| W2 | 4,800 | 5,000 | |
| W3 | 7,100 | 7,400 | |
| W4 | 9,400 | 9,800 | |
| W5 | 3,400 | 3,500 | |
| W6 | 3,600 | 3,700 | |
| L (mm) | L1 | 5,350 | 5,450 |
| L2 | 5,350 | 5,450 | |
| L3 | L2+200 | L2+200 | |
| L4 | 5,600 | 5,700 | |
| H (mm) | H1 | 2,000 | 2,000 |
| H2 | 4,350 | 4,350 | |
| H3 | 6,500 | 6,500 | |
| H4 | VAR | VAR | |
| H5 | 3,200 | 3,200 | |
| PIT (mm) | ... | ... |
STANDARD DIMENSIONS
| Elevation | Motor | Max. 30kw | |
|---|---|---|---|
| Speed | Max.60m/min | ||
| Trolley | Direction | Driving | Horizontal |
| Driving Power | Friction | Friction | |
| Speed | Max. 150m/min | Max. 46m/min | |
| Motor | Max. 2.2kW | Max. 2.2kW | |
| Power Supply | 1 LIFT | Max.65KVA | |
| 2 LIFT | Max.110KVA |
